Submersible Waste Water & Sewage Pumps

Wastewater Submersible Sewage Pumps WS_D4 Series 3888D4

Applications

  • Sewage Systems
  • Flood and Pollution Control
  • Dewatering Effluent
  • Farms
  • Hospitals
  • Trailer Courts
  • Motels

Features and Benefits

  • Cast Iron, two vane semi-iron, non-clog impeller with pump-out vanes for mechanical seal protection
  • Heavy Duty cast iron, volute type casing for maximum efficiency
  • 4″ Flanged Discharge Size
  • Designed for Continuous Operation

Wastewater Submersible Sewage Pumps WS_BHF Series 3887 BHF

Applications

  • Homes
  • Sewage Systems
  • Dewatering Effluent
  • Water Transfer
  • Light Industrial
  • Commercial Applications

Features and Benefits

  • Cast Iron Enclosed, Non Clog Impeller with pump out vanes for mechanical seal protection
  • Corrosion Resistant 300 Series Stainless Steel Shaft
  • Designed for Continuous Operation When Fully Submerged
  • Cast Iron flanged volute type casing for maximum efficiency

Wastewater Submersible Sewage Pumps 2WD / 3WD

Submersible 2″ Non-Clog Sewage Pumps Dual Seal with Seal Sensor Probe 2WD/3WD

Applications

  • Sewage Systems
  • Dewatering/Effluent
  • Water Transfer
  • Light Industrial
  • Commercial Applications

Features and Benefits

  • Cast iron, semi-open or enclosed, non-clog impeller; dynamically balanced with pump out vanes for mechanical seal protection. Optional silicon bronze impeller available
  • Cast iron, flanged volute type casing for maximum efficiency
  • Dual Mechanical Seals
  • Seal Sensor Probe
  • Corrosion resistant, 400 series stainless steel shaft

Wastewater Submersible Sewage Pumps WS D3 Series 3888D3

Applications

  • Sewage Systems
  • Flood and Pollution Control
  • Dewatering Effluent
  • Farms
  • Hospitals
  • Trailer Courts
  • Motels

Features and Benefits

  • Cast Iron, two vane semi-iron, non-clog impeller with pump-out vanes for mechanical seal protection.
  • Heavy Duty cast iron, volute type casing for maximum efficiency.
  • 2.5″ Solids Handling Capabilities.
  • Designed for Continuous Operation

Wastewater Submersible Sewage Pumps WS_B Series 3886

Applications

  • Homes
  • Sewage Systems
  • Dewatering Effluent
  • Water Transfer

Features and Benefits

  • 2″ Solids handling capabilities
  • Discharge Size 2″ NPT
  • Capacities up to 185 GPM
  • Corrosion Resistant Stainless Steel Shaft
  • Dynamically Balanced Non-Clog Impeller
  • Total Heads up to 38 Feet
  • Continuous Operation Design

Wastewater Submersible Sewage Pumps Dual Seal with Seal Sensor Probe 3SD

Applications

  • Sewage Systems
  • Flood and Pollution Control
  • Dewatering Effluent
  • Farms
  • Hospitals
  • Trailer Courts
  • Motels

Features and Benefits

  • Cast iron 2-vane, semi-open, non-clog impeller with pump-out vanes for mechanical seal protection. Balanced for smooth operation. Silicon Bronze available as an option
  • Heavy duty cast iron volute type casing for maximum efficiency. 3″ flange conforms to 125 PSI ANSI standard. Built for A10-30 slide rail system.(See accessories)
  • Dual Mechanical Seals
  • 300 Series stainless steel keyed-design shaft.
  • Seal Sensor Probe

Wastewater Submersible Sewage Pumps WS_BF Series 3887BF

Features and Benefits

  • Cast Iron Semi-Open Non-Clog Impeller
  • Cast Iron flanged volute type for maximum efficiency
  • Corrosion Resistant 300 Series Stainless Steel Shaft
  • Designed for Continuous Operation When Fully Submerged

Commercial Explosion Proof Wastewater Submersible Sewage Pumps 3SDX

3″ Discharge Submersible Sewage Pump with Explosion Proof Motor

Applications

  • Designed for a variety of hazardous commercial and industrial applications
  • Sewage Systems
  • Flood and Pollution Control
  • Dewatering Effluent
  • Hospitals
  • Trailer Courts
  • Hotels and Motels

Features and Benefits

  • Cast Iron, ASTM A48, Class 30, two vane, semi-open impeller with non-clog design and pump out vanes for mechanical seal protection
  • Heavy duty gray cast iron, ASTM A48, Class 30, Volute type casing with 3″ 125# flanged, horizontal discharge conforming to ANSI standards
  • Tandem mechanical seal system in an oil filled seal chamber. Each seal operates independently to ensure fail safe performance
  • Explosion Proof Motor for use in hazardous locations. Rated Class 1, Groups C&D

Commercial Explosion Proof Wastewater Submersible Sewage Pumps

4″ Non-Clog 4NS

Applications

  • Sewage Systems
  • Flood and Pollution Control
  • Industrial Dewatering
  • Waste Water Treatment Plants
  • Municipal and Subdivision Lift Stations

Features and Benefits

  • Cast iron, two vane closed design impeller for high efficiency and maximum wear life. Optional bronze impeller available
  • Replaceable bronze wear ring to renew the running clearances and efficiencies to original conditions
  • Heavy duty cast iron, volute type casing for maximum efficiency
  • Designed for Continuous Operation
  • Dual Mechanical Seals

Wastewater Submersible Sewage Pumps 1DM/2DM

Applications

  • Homes and farms
  • Mobile home parks and motels
  • Schools and hospitals
  • Municipal package systems
  • Industrial treatment systems
  • Dewatering applications

Features and Benefits

  • Casing: Corrosion resistant AISI 304 SS designed for long lasting performance
  • Impeller: AISI type 304 stainless steel construction; two vane non-clog design for maximum pumping efficiency
  • Mechanical Seal: Drive lube silicon carbide sealing faces; all metal components of AISI type 300 stainless steel running in protected oil chamber
  • Discharge: 1.” and 2″ NPT for horizontal connection to rigid, flexible or guide rail piping connection.
  • Shaft: AISI type 304 stainless steel high strength pump shaft with keyed and locking cap screw impeller fastening
  • Pump Support Feet, Motor Shell and Lifting Handle: Constructed of AISI type 304 series stainless steel
  • Elastomers: BUNA-N

Wastewater Submersible Sewage Pumps 1DV/2DV

Applications

  • Dewatering applications
  • Homes and farms
  • Industrial treatment systems
  • Mobile home parks and motels
  • Municipal package systems
  • Schools and hospitals

Features and Benefits

  • 1 1/2 and 2″ Discharge on 1/2 and 3/4 hp and larger
  • 1 3/8″ solid size on 1/2 HP; 2″ solids on 3/4 HP and larger
  • AISI 304 SS Casing and Impeller
  • Capacities to 130 U.S. GPM
  • Continuous Duty Rated, Non-Overloaded Motor
  • Vortex Design AISI type 304 SS Impeller
  • Total Heads to 39 Feet

Submersible Grinder Pumps

Submersible Grinder Pumps 1GA & 2GA Optional Explosion Proof

Applications

  • High head and pressure sewage systems for: Municipal
  • Commercial
  • Industrial

Features and Benefits

  • Design: Capable of grinding municipal, commercial and industrial sewage.
  • Cutter System: Designed to reduce sewage to a fine slurry.
  • Impeller: Cast iron, semi-open, non-overloading multivane design with pump-out vanes for mechanical seal protection.
  • Casing: Cast iron, volute type for high efficiency.
  • Adaptable for slide rail system.
  • Paint: Two coat paint system for superior surface protection.
  • Float Leakage Sensor (FLS): a small internal float switch is used to detect the presence of water in the stator chamber. Standard on all models.
  • Leakage Sensor Detector Circuit: The FLS, when activated, will cause the patented 24 volt MiniCAS monitoring relay to signal an alarm and, if desired, stop the pump.
  • The MiniCAS 24 volt relay can be ordered separately for installation in a control panel by a UL or CSA certified panel shop or as a built-in option in our control panel.

Submersible Grinder Pumps with Dual Seal 1GD

Applications

  • Designed for high head sewage applications where a gravity system is not practical
  • Ideal for pressure sewage systems

Features and Benefits

  • Silicon bronze, multi-vane semi-open impeller with pump-out vanes for mechanical seal protection
  • Heavy duty cast iron, volute type casing for maximum efficiency
  • Dual Mechanical Seals
  • Optional Seal Sensor Cord located in oil-filled chamber
  • Stainless Steel Shaft and Fasteners

Submersible Effluent Pumps

2ED Series Effluent Submersible Pumps

Goulds Submersible Effluent Pumps- Dual Seal with Seal Sensor Probe

Applications

  • Farms
  • Motels
  • Hospitals
  • Trailer courts
  • Schools
  • Industry
  • Effluent systems

Features and Benefits

  • Impeller: Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection. Balanced for smooth operation. Silicon bronze impeller available as an option.
  • Casing: Cast iron volute type for maximum efficiency. 2″ NPT discharge.
  • Dual Mechanical Seals Lower: Silicon Carbide vs. Silicon Carbide sealing faces. Stainless steel metal parts, BUNa-N elastomers. Upper: Carbon vs. ceramic sealing faces. Stainless steel metal parts, BUNa-N elastomers.
  • Seal Sensor Probe: Located in oil-filled chamber. If pumpage should begin to leak past lower seal it indicates to pump control panel a fault has occurred. Requires optional Seal Fail Circuit in the control panel.
  • Shaft: Corrosion resistant, stainless steel. Threaded design. Lock nut on all models to guard against component damage on accidental reverse rotation.
  • Fasteners: 300 series stainless steel.
  • Designed for continuous operation when fully submerged.
  • Capable of running dry without damage to components.

3885WE Series Effluent Submersible Pumps

Submersible Effluent Pumps

Specifically designed for on-site wastewater treatment for the following:

Applications

  • Homes
  • Schools
  • Effluent Systems
  • Industry
  • Farms
  • Hospitals
  • Trailer Courts
  • Motels

Features and Benefits

  • Impeller: Cast iron, semi-open, non-clog with pump-out vanes for mechanical seal protection.  Balanced for smooth operation. Silicon bronze impeller available as an option.
  • Casing: Cast iron volute type for maximum efficiency. 2″ NPT discharge.
  • Mechanical Seal: Silicon Carbide vs. Silicon Carbide sealing faces.
  • Stainless steel metal parts, BUNA-N elastomers.
  • Shaft: Corrosion-resistant, stainless steel. Threaded design.
  • Locknut on all models to guard against component damage on accidental reverse rotation.
  • Fasteners: 300 series stainless steel.
  • Designed for continuous operation when fully submerged.
  • Capable of running dry without damage to components.

GSP0311 Series Effluent Submersible Pumps

Features and Benefits

  • Premium quality pump to keep your basement dry
  • Reliable Mechanical switch coupled with solid float for dependable performance
  • Cast Iron Motor Housing allowing for optimal heat dissipation
  • Approved for Residential use (CSA/CUS Listed).
  • Premium Mechanical Seal design provides superior protection against sand and abrasive damage (Silicon Carbide/Carbon/BUNA)
  • Engineered motor designed for peak hydraulic performance without overloading.
  • Suction Strainer encompasses entire base – designed to reduce debris entry
  • Corrosion resistant hardware for lifetime use
  • 2 year warranty

GSP0511 Series Effluent Submersible Pumps

Features and Benefits

  • Premium quality pump to keep your basement dry
  • Reliable Mechanical switch coupled with solid float for dependable performance
  • Cast Iron Motor Housing allowing for optimal heat dissipation
  • Approved for Residential use (CSA/CUS Listed).
  • Premium Mechanical Seal design provides superior protection against sand and abrasive damage (Silicon Carbide/Carbon/BUNA)
  • Suction Strainer encompasses entire base – designed to reduce debris entry
  • Engineered motor designed for peak hydraulic performance without overloading.
  • Corrosion resistant hardware for lifetime use
  • 2 year warranty

PE Series Effluent Submersible Pumps

Applications

  • On-site wastewater treatment
  • Mound Systems
  • Effluent/Dosing Systems
  • Low Pressure Pipe Systems
  • Basement Draining
  • Heavy Duty Sump/Dewatering

Features and Benefits

  • Corrosion resistant construction
  • Cast iron body
  • Thermoplastic impeller and cover
  • Upper sleeve and lower heavy duty ball bearing construction
  • Motor is permanently lubricated for extended service life
  • Powered for continuous operation
  • All ratings are within the working limits of the motor
  • Quick disconnect power cord, 20′ standard length, heavy duty 16/3 SJTW with NEMA 5-15P, three prong, 115 volt grounding plug
  • Mechanical seal is carbon, ceramic, BUNA and stainless steel
  • Complete unit is heavy dury, portable and compact
  • Stainless steel fasteners

3871, EP04 & EP05 Series Effluent Submersible Pumps

Applications

  • Effluent Systems
  • Homes/Farms
  • Heavy Duty Sump
  • Water Transfer
  • Dewatering

Features and Benefits

  • EP04 Impeller: Thermoplastic semi-open design with pump out vanes for mechanical seal protection.
  • EP05 Impeller: Thermoplastic enclosed design for improved performance.
  • Casing and Base: Rugged thermoplastic design provides superior strength and corrosion resistance.
  • Motor Housing: Cast iron for efficient heat transfer, strength, and durability.
  • Motor Cover: Thermoplastic cover with integral handle and float switch attachment points.
  • Power Cable: Severe duty rated oil and water resistant.
  • Bearings: Upper and lower heavy duty ball bearing construction.
  • Capable of running dry without damage to components.

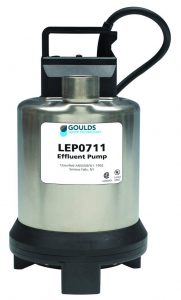

LEP07 Series Effluent Submersible Pumps

Applications

  • Effluent Systems
  • Water Transfer
  • Dewatering
  • Heavy Duty Sump

Features and Benefits

  • Corrosion-resistant construction.
  • Stainless Steel motor casing and fasteners.
  • Glass-filled thermoplastic impeller and casing.
  • Bearing: Upper and lower heavy duty ball bearing construction.
  • Motor is permanently lubricated for extended service life and is powered for continuous operation. All ratings are within the working limits of the motor.
  • Hard coated 400 series stainless steel shaft for improved corrosion resistance.
  • Optional float switch is adjustable for various liquid levels. Easily removed for direct pump operation or switch replacement.
  • Complete unit is lightweight and portable.
